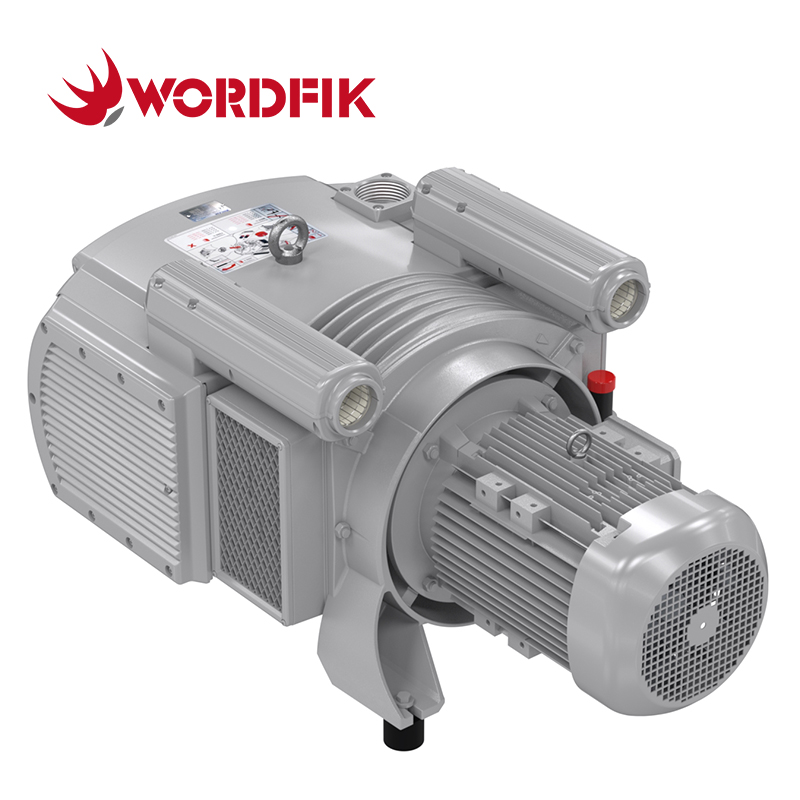

Dry Running Rotary Carbon Vanes Vacuum Pump Becker VTLF2.500
495 m³/h
Dry Running Rotary Carbon Vanes Vacuum Pump Becker VTLF2.500
- Details
- Specifications
- File
- spare part
Features:
(1) It has a high pumping speed within a wide pressure range;
(2) The rotor has good geometric symmetry, so it has low vibration and runs smoothly. There are gaps between the rotors and between the rotor and the housing, so no lubrication is required, and the friction loss is small, which can greatly reduce the driving power, thereby achieving a higher speed;
(3) There is no need for oil sealing and lubrication in the pump chamber, which can reduce the pollution of oil vapor to the vacuum system;
(4) There is no compression and exhaust valve in the pump chamber. The structure is simple and compact, and it is insensitive to dust and water vapor in the pumped gas;
(5) The compression ratio is relatively low, and the hydrogen pumping effect is poor;
(6) The rotor surface is a curved cylindrical surface with a relatively complex shape, which is difficult to process and inspect.
Application range:
Electronics, semiconductors, woodworking, pharmaceuticals, suction cups, handling, packaging, printing, environmental protection, hospitals, etc.
Becker VT Series vacuum pumps are medium vacuum, dry displacement pumps and are designed to operate on a continuous duty basis at any vacuum level from open flow to 25 inches Hg. The VT Series dry rotary vane pumps utilize self-lubricating, graphite composite vanes, specifically engineered for Becker pumps. No oil to change and only minimal maintenance is required.
Each VT Series pump comes standard with:
* Built-in inlet filter
* Vacuum regulating valve
* Vibration isolators
* Discharge silencers
